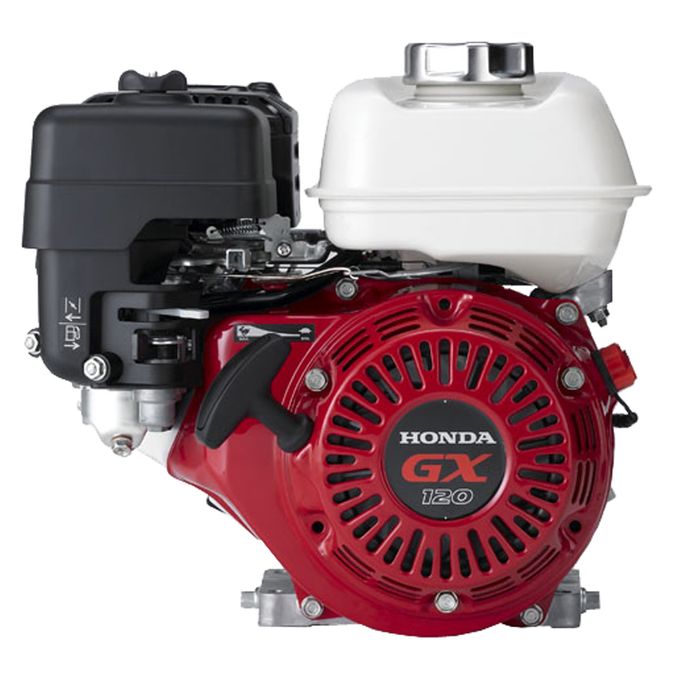

GX120 4-Stroke OHV Engine

Professionals rely on the GX120 to deliver reliable, easy starting, fuel efficient performance, day in and day out.

Features

Proven reliability

Easy to use and maintain

Easy starting

Fuel efficient, High output operation

Specifications

Model: GX120
Type: 4-stroke, overhead valve, single-cylinder, horizontal shaft
Bore and Stroke: 60 x 42 mm
Displacement: 118 cm³
Compression Ratio: 8.5:1
Net Power: 2.6kW (3.5HP) at 3,600 rpm
Continuous Rate Power: 2.1kW (2.8HP) at 3,600 rpm
Maximum Net Torque: 7.3 Nm at 2,500 rpm
Ignition System: Transistorised magneto ignition
Starting System: Recoil Starter
Cooling System: Forced-air
PTO Shaft Rotation: Counter-clockwise (from P.T.O. side)
Fuel Consumption at Rated Power: 1.0 L/h at 3,600 rpm
Recommended Oil: 10W/30 API SG
Oil Capacity: 0.6 litres
Fuel Tank Capacity: 2.0 litres
Dry Weight: 13kg
Lubrication System: Splash
Other Options: 2:1 Reduction - 2:1 Reduction with Clutch - 6:1 Reduction

Warranty

3 Year – Personal, Domestic or Household Use

3 Year – Commercial Use

This Honda Machine is only available for Pick Up In Store. Your Machine will be Fully Assembled and Pre Delivered before pick up ensuring you get the most from your New Honda Product.
