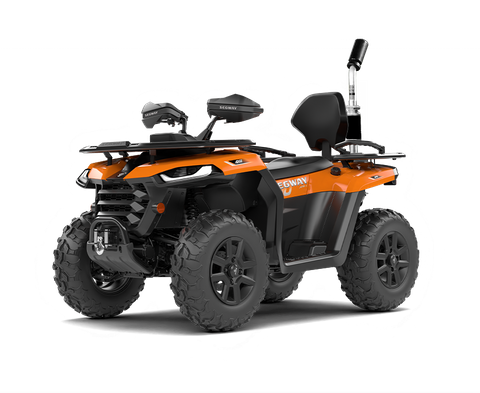

Introducing the AT5 Quad Bike, an exceptional ATV designed for Australian farmers. This compliant and advanced four-wheeler meets all Australian safety standards and includes an Operator Protection Device. Equipped with the groundbreaking Smart Commanding System (SCS), the AT5 Quad Bike allows you to access real-time data, and engage in remote monitoring and control. Tackle challenging terrains, effortlessly transport heavy loads, and elevate your farming operations with this pinnacle of design, safety, and cutting-edge technology. Choose the AT5 Quad Bike and experience excellence in farming machinery.
Specifications
Rims: 12” Alloy Rim
Tyres: 25” (6 ply)
Brakes: 4-Wheel Hydraulic Disc Brake
Shocks: Oil Shock + Adj Spring Pre-Load
Diff-Lock: Front & Fixed Rear Axle
Transmission: CVTech (Canada)
Passenger Backrest
LED Light
Indicators
Hitch & Ball Mounting Device
Front Bumper
Front & Rear Steel Rack
TBox
Smart EPS
2500 lb Winch
Handlebar Guard
Plastic Rack Covers
Powertrain & Drivetrain
Powertrain: Petrol Engine
Displacement: 499cc, 4-Stroke Single-Cylinder, DOHC Engine
Max Torque: 44 Nm
Horsepower: 39 hp
0-60km/h: 4.6 Seconds
Fuel Supply: Bosch Electronic Fuel Injection
Drive System Type: 2WD/4WD/4WD lock
Differential Lock: Front with Fixed Rear Axle
Transmission: CVTech (Canada)
Smart Electronic Power Steering (EPS): Three Models: Standard / Comfort / Sport on EPS models only
Cooling System: Dual Oil Column Piston Cooling System + Liquid & Oil Heat Exchanger Cooling System
Suspension System
Frame: High-Strength Chromium-Molybdenum Steel Frame
Rear Suspension & Travel: Dual A-Arm; Rear Travel: 7.9”
Front Suspension & Travel: Dual A-Arm; Front Travel: 7.1”
Shock: Oil Shock with Adjustable Spring Pre-load
Tyres: Front Tires 6 Ply 25 x 8-12 Rear Tires 25 x 10-12
Wheels: Alloy (12 inch) - EPS Aluminium (12 inch)
Brakes 4-Wheel Hydraulic Disk Brake
Dimensions & Capacities
Towing Capacity: 612kg *Trailer with Braking System
Payload Capacity: 270kg
Front/Rear Rack Capacity: Front/Rear: 40kg/60kg
Fuel Capacity: 19 litre
Curb Weight: 370kg
Wheelbase: 145cm
Ground Clearance: 25cm
Vehicle Size (Length/Width/Height): 230 x 118 x 135 cm
