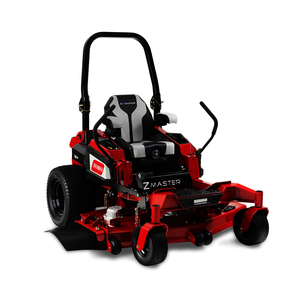

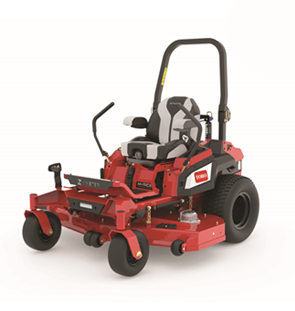

eZMaster MyRide 4000 Revolution 60"
Stock Locations
-
Toowoomba - Anzac Avenue:In Stock
-
Toowoomba - Ruthven Street:Out of Stock
-
Toowoomba - Warehouse:Out of Stock
Power - 10 x Toro HyperCell® batteries – 2.3kWh each.
Battery Capacity - HyperCell® Battery Stack x 10, 23.4 kWh, 4 - 7+ hour run time.
Deck Size - Width: 152.4 cm (60.0 inches). Depth: 14 cm (5.5 inches).
Deck Configuration - Right side discharge, three blade mid-mount rotary. Fabricated 7 gauge steel Turbo Force deck with welded reinforcements and mounting brackets. The deck has an adjustable discharge baffle, adjustable rake angle and a rubber side discharge deflector.
Deck Motors - 3kw, AC, brushless, 25mm diameter spindle shaft, maintenance free, replaceable blade driver, adjustable tip speeds 5400 RPM max.
Height of Cut - 3.8 cm to 14.0 cm in .63 cm increments (1.5 to 5.5 inches .25” increments).
Traction Motors - 3kw, AC, brushless, 34:1 planetary reduction with integrated park brake.
Ground Speed - 0-19.5 Km/h (0-12 mph)– forward 7 speed settings.
Blades - 5.18mm (.204”) heat treated steel.
Overall Width - 165.0 cm (65 inches) – With the deflector up (gate width). 191.0 cm (75.2 inches) – With the deflector down.
Overall Length - 216 cm (85 inches) – ROPS down. 206 cm (81 inches). – ROPS up.
Overall Height - 126.7 cm (49.9 inches) – ROPS down. 183.1 cm (72.1 inches) – ROPS up.
Tyres - Front – 13” x 6.5” x 6”, Flat-Free Semi-pneumatic. Rear – 24” x 12” x 12”, 4 ply Super Turf tread.
Charge Time - 15 hours with 1.2 kw Charger. 6 hours with 3.3 kw Charger.
Weight - 687 kg (1515 lbs.).
Seat - High back deluxe seat with large bolsters and thick cushion. Standard with pivotable armrests. Seat pan is fastened to MyRIDE® suspension platform. Five point adjustment on rear shock absorber / spring assemblies.
Technology - InfoCenter, USB & Led lights standard.
Warranty - Machine: 5 years / 1,250 hours (whichever occurs first) - no hour limit on the first two years.
Batteries And Charger: 4 years or 1.5 megawatt hours.
Tyres & Wear Parts: 90 days.
For all other conditions, refer to The Toro Warranty statement accompanying the machine.
